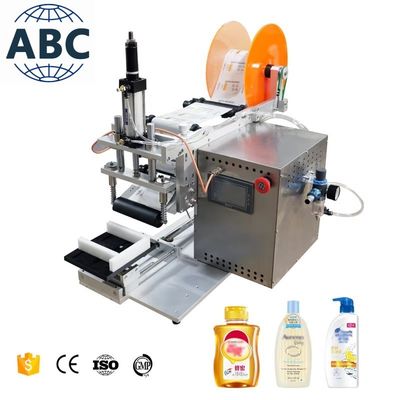

New Style Design 50Ml Refillable Home Aromatherapy Flat Glass Bottles Manual Flat Labeling Machine

New Style Design 50Ml Refillable Home Aromatherapy Flat Glass Bottles Manual Flat Labeling Machine



Scope of application:
♥ Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
♥ Applicable products: bottles between 20mm ~ 200mm L X 20mm ~ 180mm H.
♥ Application industry: widely used in food, toys, daily chemicals, and other industries.
♥ Application examples: disinfection water bottle labeling, gel water double labeling, wine bottle positive labeling, disinfecting
water, and other industries, etc.

Basic use:
◊ Applicable to labeling on the peripheral surface of a flat surface, single label, and double label. The space between the front
and back labels can be adjusted flexibly.
◊ Optional ribbon coding and inkjet printers can be used to print the production date and batch number information on the label to
achieve labeling-coding integration.



Product Name	LM2 Semi Automatic Flat Surface Labeling Machine
Label Length	10mm ~ 340mm(customized)
Label Width	5mm ~ 120mm (customized)
Product Size	L: 20mm ~ 200mm
	H: 20mm ~ 180mm
	(customized)
Labeling Accuracy	±1mm (excluding product and label errors)
Standard Labels Roll Outer Diameter	φ280mm
Standard Labels Roll Inner Diameter	φ15mm ~ φ76mm
Labeling Speed	5-30 pcs / min
Speed of Labeling Head	5 ~ 45m / min
Air Pressure	0.4-0.6mpa
Voltage	Single Phase 220V/110V, 50~60Hz
Machine Net Weight	About 50kg

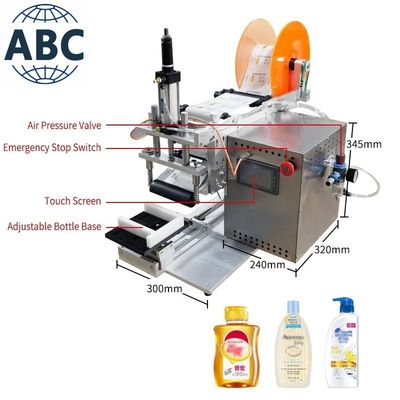

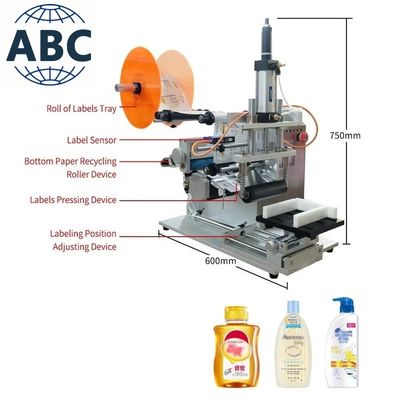

Machine Dimensions(L × W × H)	600*500*750mm

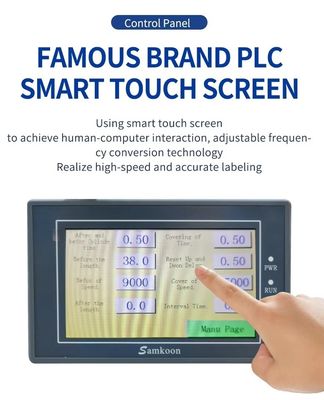

Control Panel





FAMOUS BRAND PLCSMART TOUCH SCREEN



| Using the smart touch screen to achieve human-computer interaction, adjustable frequen-cy conversion technology

| Realize high-speed and accurate labeling

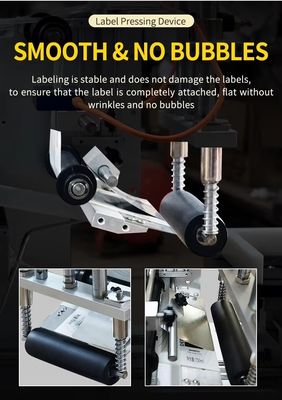

Label Pressing Device

SMOOTH & NO BUBBLES

| Labeling is stable and does not damage the labels.to ensure that the label is completely attached, flat without wrinkles and has no bubbles

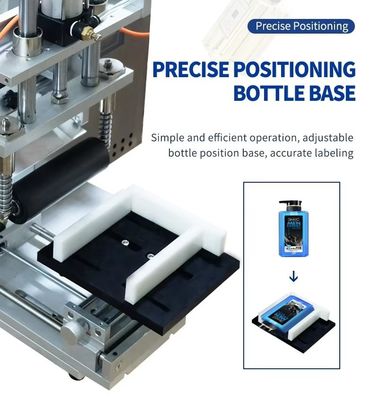

Precise Positioning



PRECISE POSITIONING BOTTLE BASE



| Simple and efficient operation, adjustable bottle position base, accurate labeling

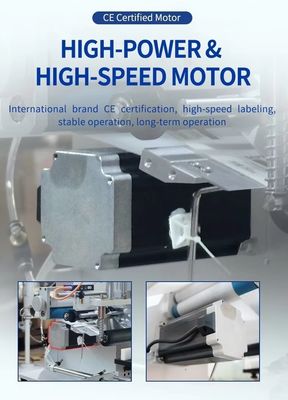

CE Certified Motor



HIGH-POWER &HIGH-SPEED MOTOR



| International brand CE certification, high-speed labeling stable operation, long-term operation



FAQ

Q: What are your advantages compared with your competitors?
A:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.

Q: Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.

Q: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.

Q: What are your Payment Terms?

A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.

Q: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.

Q: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.

Q: Can I print my Logo on the machine?
A: Yes, sure.

Q: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.

Q: What are your modes of transportation?
A: Courier service, Air transport, Sea Transport.

Q: Which ports do you usually ship at?
A: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
