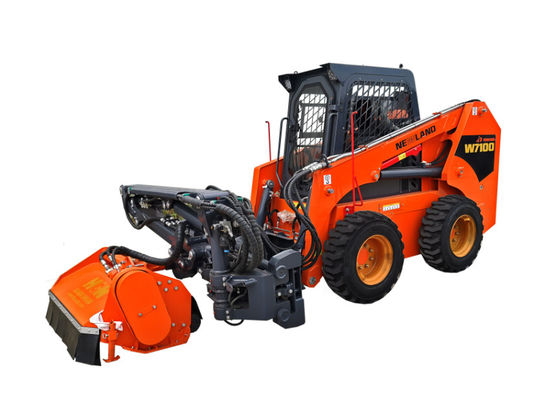

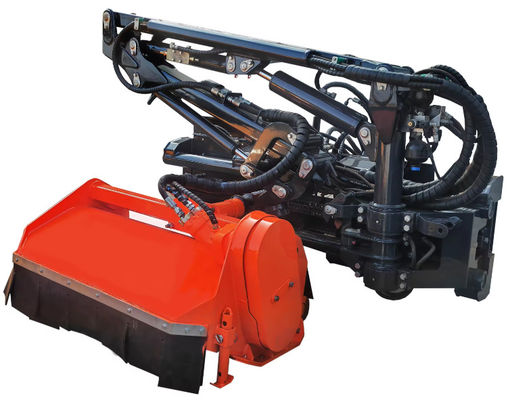

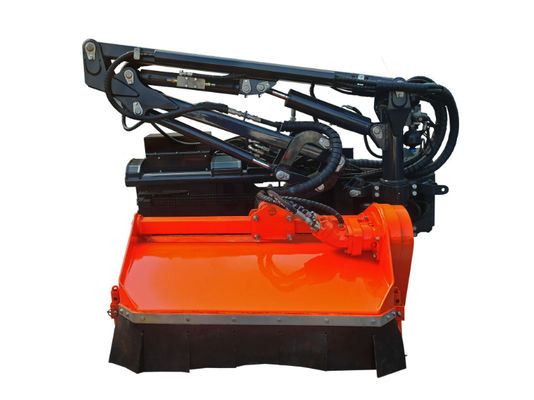

Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors

I'm Online Chat Now

Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors

Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors
Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors

Large Image :  Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors

Product Details:
Place of Origin: CHINA
Brand Name: ABC
Certification: CE, ISO
Model Number: ABC-052840
Payment & Shipping Terms:
Minimum Order Quantity: 20UNITS
Price: Negotiate
Packaging Details: Iron frame
Delivery Time: 20-22DAYS
Payment Terms: T/T, Western Union
Supply Ability: 10UNITS/DAY

Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors

Description
Model: 052840 Overall Length (mm): 1530
Overall Width (mm): 2000 Overall Height (mm): 1400
Trimming Width (mm): 1000 Overall Weight(kg): 875
Horizontal Displacement (mm): 1320 Horizontal Angle Of Deflection (°): 30°
Highlight:

Ront Verge Flail Mower

,

Rear Verge Flail Mower

,

Side Boom Arm Verge Flail Mower

Ront / Rear Verge Flail Mower With Side Boom Arm For Skid Loader / Excavator / Tractors


Production Description:
1. It is suitable for greening and trimming operation of river weed slope land and highway green belt; it is an ideal tool for municipal afforesting and urban landscaping.
2. It adopts multi-joint design for the two arms, which can allow the operator to achieve flexible control and allow the product to span a variety of guardrails for long-distance trimming operation;
3. The width of slope trimming is one meter; the product adopts replaceable flail design.
4. It can be used in different working conditions as it has side shift function for a wider range of trimming.
5. It adopts electric proportional load sensitive control system, flexible and reliable operation, improve work efficiency and safety.
6. Adopted a deflection function, it can be deflected by 30°, which increases the applicability of the product.
7. The boom can be stretched up to 4.6 meters, and the slope can be trimmed within this range.
8. The arms and the tipping bucket can be retracted during transportation to reduce the transportation space.
9. The product has a spiral adjustment function to allow the operator change the angle at will.
10. With roller adjustment device, the height of trimming weed can be adjusted in time.
11. The inclined axis type quantitative plunger motor has the characteristics of compact structure, high efficiency and good pressure resistance, which increases the service life of the product.
12. Conical sleeve pulley has the characteristics of simple structure, convenient disassembly and assembly, stable transmission, and it also has the capacities of buffer damping and noise reducing.
13. The product doesn’t need lubrication to reduce maintenance cost.
14. Equipped with shock absorption and floating function, the product can reduce the imact and protect the working device from damage.

SPECIFICATIONS
Main Specification
Model
052840
Overall length (mm)(Transportation size)
1530
Overall width (mm)(Transportation size)
2000
Overall height (mm)(Transportation size)
1400
Weight (kg)
875
Trimming width (mm)
1000
Horizontal angle of deflection (°)
30°
Horizontal displacement (mm)
1320
Max. trimming radius (mm)(Host machine is not included)
4600
Max. working pressure (Mpa)
21
Working speed (km/h)
<6
Required hydraulic flow (L/Min)
75-100
Working Voltage (V)
DC12/24
Suitable machine
Vehicle/high-power skid steer load
