Product Details:
|
| Place Of Origin: | China | Weight(Kg): | 334 |
|---|---|---|---|
| Cutting Width(mm): | 1400 | PTO Input Speed: | 540 |
| Number Of Blades: | 20 | Wheel Track(customisable): | 30-50 |
| Highlight: | Light Duty Tractor Flail Mower,Rear Side Flail Mower,Pto Pull Behind Flail Mower |
||
Rear-Side Flail Lawn Mower Mulcher For Light Duty Tractor Pto Pull Behind Flail Mower
Orchard King 300 main body is a single horizontal shaft driven by multiple toothed belts, with crushing hammers. Each hammer weighs half a kilogram, has large inertia, and can crush branches of 2 centimeters.
Compared with multi-cutter rotary mowers, Orchard King 300's structure is more simplified and more resistant to terrain impact also can adapt to the complex terrain of orchards and vineyards.
Due to the simplified design of the transmission structure, the potential failure points are reduced, the failure rate is significantly reduced, and it is easier to use the orchard for a long time.
The swing arm cutter is lightweight, and it's height and angle can be adjusted independently.
Orchard King is available as a basic model and an upgraded version with a pair of movable side arms. The main engine of the basic model is directly connected to the suspension bracket, and the front and rear distance of the machine is more compact.

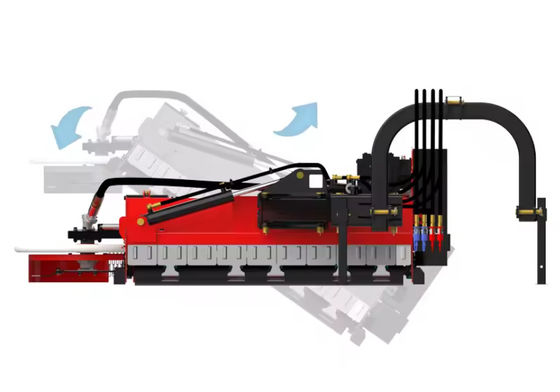

The upgraded model can hydraulically control the side shift and flip of the main engine, which is not only suitable for a variety of row spacing, but also easy to turn around, but also more suitable for a variety of terrain, including ridge slopes under trees, gutters between rows or hilly orchards.
Orchard King 300 series has a number of models with different cutting sizes, suitable for a variety of row spacing, and the power demand for the tractor is not the same.
Generally equipped with 30 ~ 50 hp compact tractor.

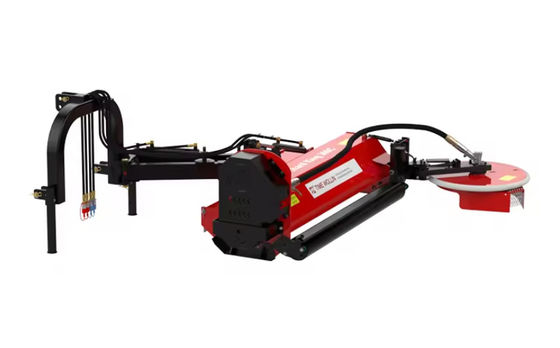

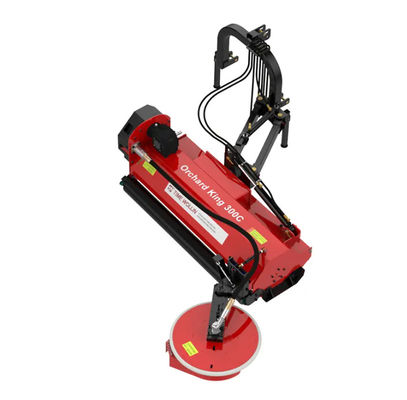

Product Display
