Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor

Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor
Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor

Large Image :  Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor

Product Details:
Place of Origin: CHINA
Brand Name: ABC
Certification: CE, ISO
Model Number: ABC-TP-1LF-LKX450
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: General packing, according to the actual situation
Delivery Time: 20-35days
Payment Terms: T/T, Western Union
Supply Ability: 10 Set/Sets per Day

Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor

Description
Place Of Origin: China No.of Plowshares: 4
Bottom No.: LK500 Grid Type Working Width Per Bottom: 33-50cm
Plough Point High: 182cm Bottom To Bottom Size: 100cm
Plough Beam Specification: 140*140*12mm Weight: 1700kg
Power Required: 180-200HP Machine Working Width: 132-200cm
Highlight:

Agricultural Tillage Implements Shore Plow

,

Tractor Shore Plow

,

Full Suspension Hydraulic Shore Plow

Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor



Product Description:
When the semi-suspension plow is used under the bankthese two parts are integrated through the slot, and thetire does not work at this time. Only when thesemi-suspension plow switches to on-shore operation.the jamming is separated, and the tires limit the depth ofthe plow operation at this time.
The fence and plow shovel are madeof wear-resistant alloy steelheat-treated and processed, and thecurved surface formed by the fence isespecially suitable for soil turning, withlow resistance to plowing and goodsoil turning effect.
The plow tip is made of special alloy stee!forged at 6000 tons, with a tungsten alloywear-resistant layer fused to the surfacefor a self-sharpening effect.
The secondary plow support is made of alloy steelprecision casting, with precise angle and more left andright adjustable margins with the large plow body
The one-piece plow bracket has a simple, lightweightstructure and completely solves the problem of easygrass plugging of the spreader bar fence.
Locking safety pin when the semi-suspension plow is used foroff-shore to prevent failure of the cut-off valve that switches theoff-shore and on-shore operating cylinders.


Product Parameters
Code No.
1LF-LKX450
1LF-LKX460
1LF-LKX550
1LF-LKX550A
1LF-LKX650
No.of Plowshares
4
4
5(4+1)
5
6(5+1)
Bottom No.
LK500 Grid Type
LK500 Grid Type
LK500 Grid Type
LK500 Grid Type
LK500 Grid Type
Working Width Per Bottom
33-50cm
40-60cm
33-50cm
33-50cm
33-50cm
Plough Point High
182cm
182cm
182cm
195cm
195cm
Bottom to Bottom Size
100cm
120cm
100cm
100cm
100cm
Plough Beam Specification
140*140*12mm
140*140*12mm
140*140*12mm
160*160*12mm
160*160*12mm
Machine Working Width
132-200cm
160-240cm
165-250cm
165-250cm
198-300cm
N.Weight
1700kg
1760kg
1800kg
1950kg
2100kg
Power Required
180-200HP
200-240HP
200-250HP
200-260HP
240-270HP



Product Display

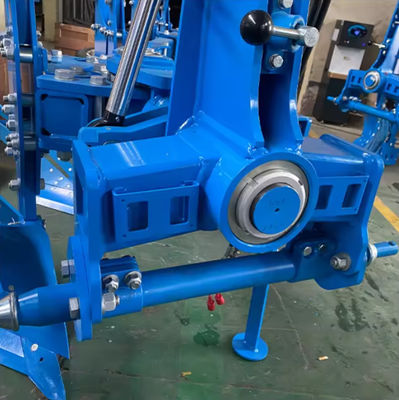

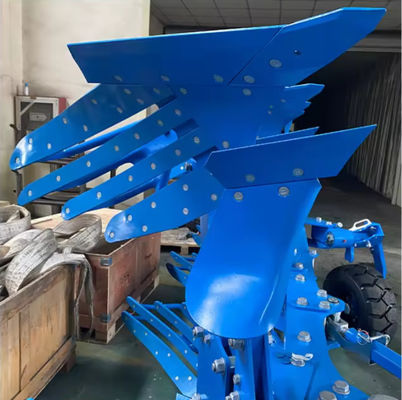

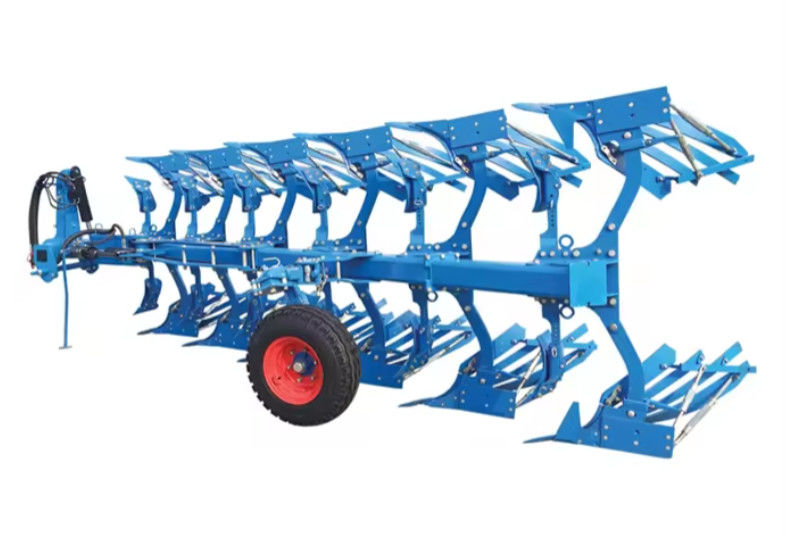

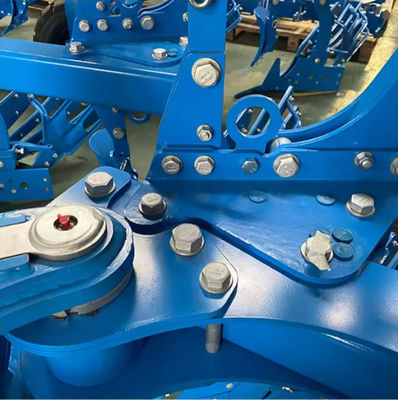

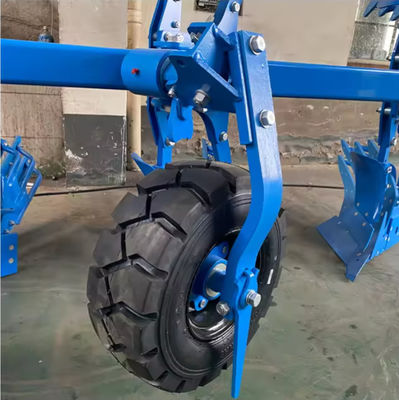

Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor 0Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor 1Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor 2Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor 3Agricultural Tillage Implements Full Suspension Hydraulic Shore Plow For Tractor 4





FAQ

Q: How To Order ?

A: Step 1, please tell us what model and quantity you need;

Step 2, then we will make a PI for you to confirm the order details;

Step 3, when we confirmed everything, can arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.



Q: When you ship my order

R: Normally container need 15-40days, sample 3-7DAYS



Q: How about the quality guarantee period?

R: One year.



Q: Do you have the certificates?

R: Yes, we have passed the CE and CCC certification.



Q: Do you offer ODM & OEM service.

R: Yes, we can custom design for specific application.



Q: When can I get the quotation?

R:We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.



Q: How can I get a sample to check your quality?

R:After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ



Q: What is your main market?

R:Southeast Asia, South America,Middle East.North America,EU After-sales Service 1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
