Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation

Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation
Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation

Large Image :  Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation

Product Details:
Place of Origin: CHINA
Brand Name: ABC
Certification: CE, ISO
Model Number: ABC-TP-1LF-LK450
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: General packing, according to the actual situation
Delivery Time: 20-35days
Payment Terms: T/T, Western Union
Supply Ability: 10 Set/Sets per Day

Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation

Description
Place Of Origin: China No.of Plowshares: 4(3+1)
Bottom No.: LK500 Grid Type Working Width Per Bottom: 33-50cm
Plough Point High: 182cm Bottom To Bottom Size: 100cm
Plough Beam Specification: 140*140*12mm Weight: 1400kg
Power Required: 160-200HP Machine Working Width: 132-200cm
Highlight:

Agricultural Farming Equipment Hydraulic Shore Plow

,

Land Reclamation Hydraulic Shore Plow

,

Full Suspension Hydraulic Shore Plow

Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation



Product Description:
Simple plywood construction machined from special materials thatare flexible, lightweight and very strong
The main plow beam is made of 140x140 and 160x160square tubes and processed by special heat treatment,which is flexible, lightweight and has excellent comprehensive mechanical properties.
Wear-resistant structure on theplow side plate for increasedservice life
Adjust the adjusting lever on the back ofthe bar to adjust the tilting surface foroptimal stubble burial
The main plow arm and attached plow arm are made ofhigh-strength alloy steel through special heat treatmentand have very good yield strength and tensile strength,
Safety bolt structure effectively prevents overloadand protects the main plow arm


Product Parameters
Code No.
1LF-LK450
1LF-L460
1LF-LK550
1LF-LK460A
1LF-L560
No.of Plowshares
4(3+1)
4(3+1)
5(4+1)
4
5(4+1)
Bottom No.
LK500 Grid Type
LK500 Grid Type
LK500 Grid Type
LK500 Grid Type
LK500 Grid Type
Working Width Per Bottom
33-50cm
40-60cm
33-50cm
40-60cm
40-60cm
Plough Point High
182cm
182cm
182cm
195cm
195cm
Bottom to Bottom Size
100cm
120cm
100cm
120cm
120cm
Plough Beam Specification
140*140*12mm
140*140*12mm
140*140*12mm
160*160*12mm
160*160*12mm
Machine Working Width
132-200cm
160-240cm
165-250cm
160-240cm
200-300cm
N.Weight
1400kg
1480kg
1750kg
1800kg
1960kg
Power Required
160-200HP
180-220HP
180-240HP
200-240HP
220-260HP





Product Display

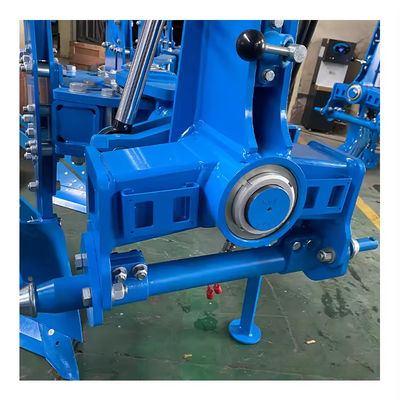

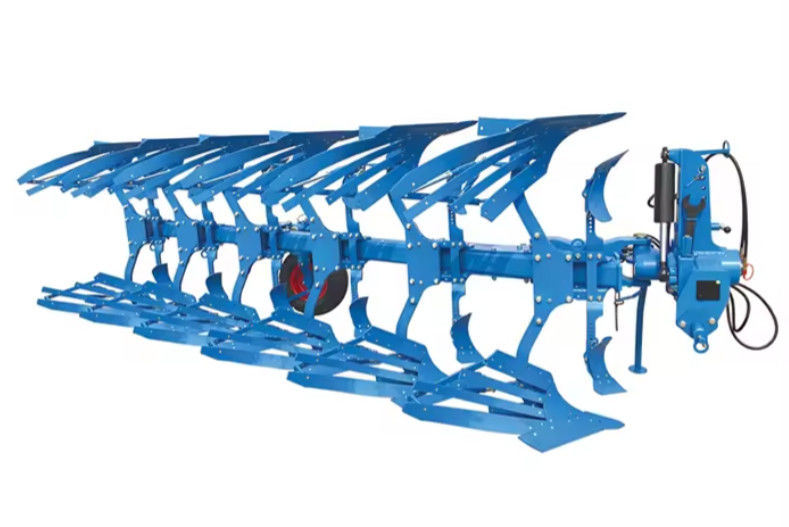

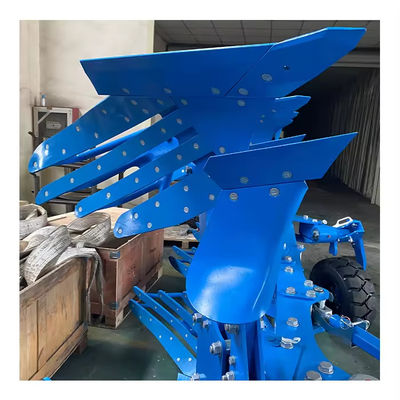

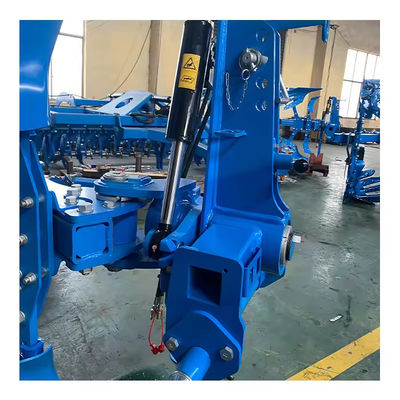

Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation 0

Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation 1Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation 2Agricultural Farming Equipment Full Suspension Hydraulic Shore Plow For Land Reclamation 3





FAQ

Q: How To Order ?

A: Step 1, please tell us what model and quantity you need;

Step 2, then we will make a PI for you to confirm the order details;

Step 3, when we confirmed everything, can arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.



Q: When you ship my order

R: Normally container need 15-40days, sample 3-7DAYS



Q: How about the quality guarantee period?

R: One year.



Q: Do you have the certificates?

R: Yes, we have passed the CE and CCC certification.



Q: Do you offer ODM & OEM service.

R: Yes, we can custom design for specific application.



Q: When can I get the quotation?

R:We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.



Q: How can I get a sample to check your quality?

R:After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ



Q: What is your main market?

R:Southeast Asia, South America,Middle East.North America,EU After-sales Service 1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
