Excavator Hydraulic Drum Cutter For Tunnel Construction Works

Name: Excavator Hydraulic Drum Cutter For Tunnel Construction Works
Brand: ANHUI BIWINTON INTERNATIONAL TRADE CO.,LTD
SKU: ABC-MD150
Availability: InStock

All Products

Agricultural Farm Machinery
(132)

Logistics Machines
(97)

Cleaning Equipment Machines
(80)

Industrial Packing Machines
(38)

Building Construction Machines
(142)

Road Safety Products
(51)

Emergency Rescue Equipment
(67)

Industrial Electric Motors
(26)

Spherical Roller Bearings
(37)

Conveyor Assembly Line
(18)

Food Processing Machines
(56)

Other Machines
(46)

Best Products

2000mm Building Construction Machines Rotary Drilling Rig

Excavator Hydraulic Drum Cutter For Tunnel Construction Works

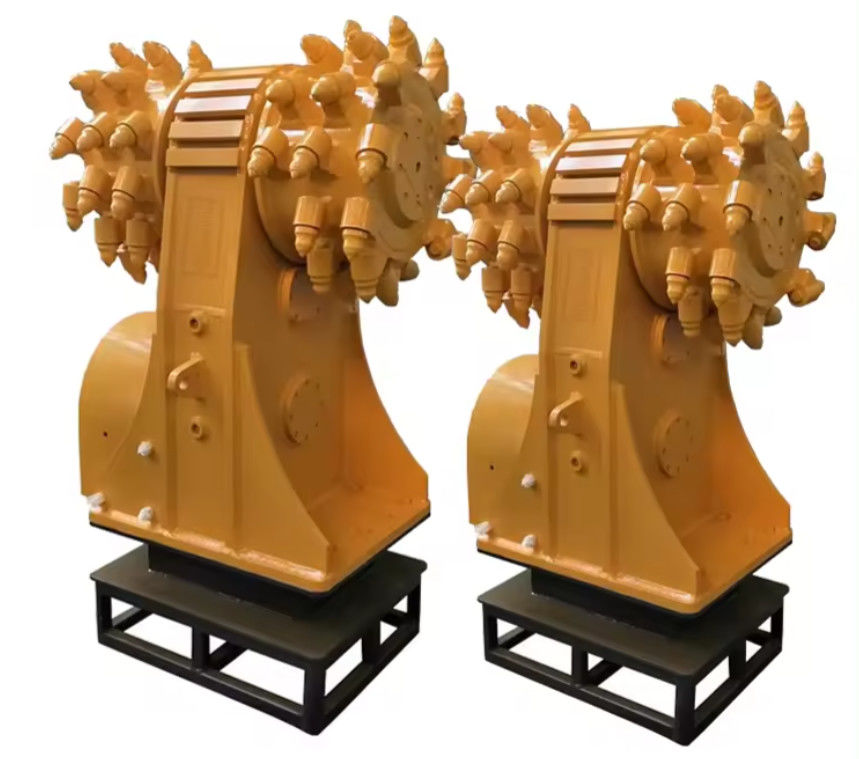

Large Image : Excavator Hydraulic Drum Cutter For Tunnel Construction Works

Product Details:

Place of Origin:	CHINA
Brand Name:	ABC
Certification:	CE, ISO
Model Number:	ABC-MD150

Payment & Shipping Terms:

Minimum Order Quantity:	10UNITS
Price:	Negotiate
Packaging Details:	Iron frame
Delivery Time:	20-22DAYS
Payment Terms:	T/T, Western Union
Supply Ability:	10UNITS/DAY

Contact Now

Excavator Hydraulic Drum Cutter For Tunnel Construction Works

Description

Product Name:	Drum Cutter	Input Power（kw）:	30
Max. Power（kw）:	40	Cutting Speed（rpm）:	90-130
Oil Flow（L/min）:	60-90	Overall Weight (kg):	845KGS
Highlight:	Tunnel Construction Works Drum Cutter , Excavator Hydraulic Drum Cutter , Tunnel Construction Works Hydraulic Drum Cutter

Excavator Hydraulic Drum Cutter For Tunnel Construction Works

Product Description

Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field.

Sepecification

Model	MD80	MD150	MD240	MD350	MD450
Operating Weight(kg)	372	845	1340	1860	2620
Input Power(kw)	25	30	52	60	120
Max. Power(kw)	34	40	62	70	140
Max. Operating Power(bar)	350	350	350	350	350
Oil Flow(I/min)	30-50	60-90	80-140	140-210	260-450
Cutting Speed(rpm)	120-200	90-130	65-113	50-9	40-70
Cutting Head Torque(Nm)	3200	5800	10900	24000	36000
Cutter Dia.(mm)	360	460	590	620	730
Carrier Weight(tons)	3.0-8.0	8.0-15.0	15.0-24.0	18.0-35.0	30.0-45.0

NOTE: Due to the continuous development of technology, this table is for reference only. Product specifications,accuracy,and appearance are subject to change without notice, and the actual order/customization communication shall prevail.
