Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter

Name: Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter
Brand: ANHUI BIWINTON INTERNATIONAL TRADE CO.,LTD
SKU: ABC-MD80
Availability: InStock

All Products

Agricultural Farm Machinery
(132)

Logistics Machines
(97)

Cleaning Equipment Machines
(81)

Industrial Packing Machines
(38)

Building Construction Machines
(152)

Road Safety Products
(51)

Emergency Rescue Equipment
(67)

Industrial Electric Motors
(26)

Spherical Roller Bearings
(37)

Conveyor Assembly Line
(18)

Food Processing Machines
(56)

Other Machines
(46)

Best Products

2000mm Building Construction Machines Rotary Drilling Rig

Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter

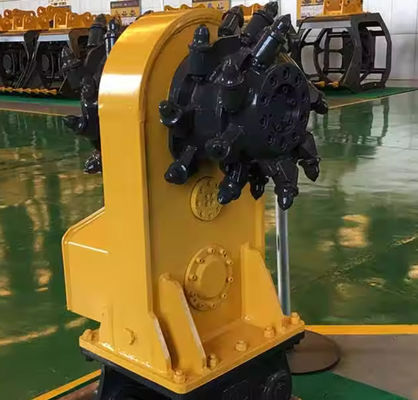

Large Image : Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter

Product Details:

Place of Origin:	CHINA
Brand Name:	ABC
Certification:	CE, ISO
Model Number:	ABC-MD80

Payment & Shipping Terms:

Minimum Order Quantity:	10UNITS
Price:	Negotiate
Packaging Details:	Iron frame
Delivery Time:	20-22DAYS
Payment Terms:	T/T, Western Union
Supply Ability:	10UNITS/DAY

Contact Now Chat Now

Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter

Description

Product Name:	Drum Cutter	Input Power（kw）:	25
Max. Power（kw）:	34	Cutting Speed（rpm）:	120-200
Oil Flow（L/min）:	30-5-	Overall Weight (kg):	372KGS
Highlight:	Rotary Drum Cutter , Rock Hydraulic Drum Cutter , Excavator Hydraulic Drum Cutter

Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter

Product Description

1. Rock or concrete wall and surface analysis, trench digging, soft rock and frozen soil excavation and demolition.

2. Excavation of tunnels, ditches, municipal pipelines.

3. Road surface crushing, rock and frozen soil excavation.

4. Opencast coal mine excavation, surface creation, steel industry, forestry and other construction fields.

Sepecification

Model	MD80	MD150	MD240	MD350	MD450
Operating Weight(kg)	372	845	1340	1860	2620
Input Power(kw)	25	30	52	60	120
Max. Power(kw)	34	40	62	70	140
Max. Operating Power(bar)	350	350	350	350	350
Oil Flow(I/min)	30-50	60-90	80-140	140-210	260-450
Cutting Speed(rpm)	120-200	90-130	65-113	50-9	40-70
Cutting Head Torque(Nm)	3200	5800	10900	24000	36000
Cutter Dia.(mm)	360	460	590	620	730
Carrier Weight(tons)	3.0-8.0	8.0-15.0	15.0-24.0	18.0-35.0	30.0-45.0

NOTE: Due to the continuous development of technology, this table is for reference only. Product specifications,accuracy,and appearance are subject to change without notice, and the actual order/customization communication shall prevail.

Excavator Rotary Drum Cutter Rock Hydraulic Drum Cutter 0

Tag:

Contact Person: Mr. Calvin Zhang

Tel: +8615255120126

Fax: 86-551-6299-2423
