1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price

I'm Online Chat Now

1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price

1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price
1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price

Large Image :  1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price

Product Details:
Place of Origin: CHINA
Brand Name: ABC
Certification: CE, ISO
Model Number: ABC-MT-0030
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500PCS/month

1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price

Description
Type: Portable Type Speed(RPM): 1500rpm/1800rpm
Starting System: Auto Start, Recoil Start, Remote Start, 12V DC Electric Start, 24V DC Electric Start Cooling System Type: Cooling Fins
Phase: 3 Phase Color: Customers' Request
Alternator: 100% Copper Wire Bearing: Single Double Bearing
Rated Voltagee: 220V/380V Rated Currentperature: Depend
Frequency: 50hz/60hz
Highlight:

1500/1800rpm Alternator Dynamo

,

3 Phase Brush Generator Dynamo

,

1500/1800rpm Brush Generator Dynamo

1500/1800rpm 3 phase 10kw 15kw 20kw 30kw 50kw 75kw STC alternator brush generator dynamo price



Product parameter



STC three phase alternator
Model
Rated Output

Current(A)
Rated voltage
Rated Speed
(r/min)
Frequency
(HZ)
G.W
(kg)
Size
KW
KVA
(V)
(cm)
STC-3
3
3.8
5.4








400/220








1500/1800








50/60
53
51*29*43
STC-5
5
6.3
9
80
61*34*50
STC-7.5
7.5
9.4
13.5
82
61*34*50
STC-10
10
12.5
18.1
103
65*39*54
STC-12
12
15
21.7
106
65*39*54
STC-15
15
18.8
27.1
146
70*42*58
STC-20
20
25
36.1
156
70*42*58
STC-24
24
30
43.3
165
70*42*58
STC-30
30
37.5
54.1
320
88*50*69
STC-40
40
50
72.2
365
88*50*69
STC-50
50
62.5
90.2
410
88*50*69
STC-64
64
80
117.5
450
88*50*69

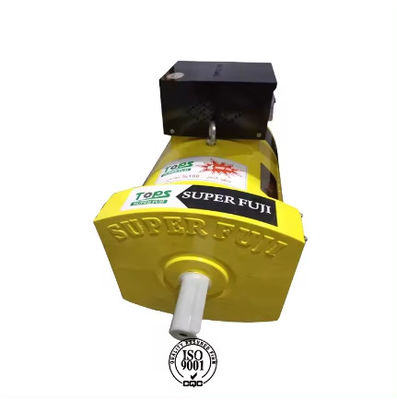

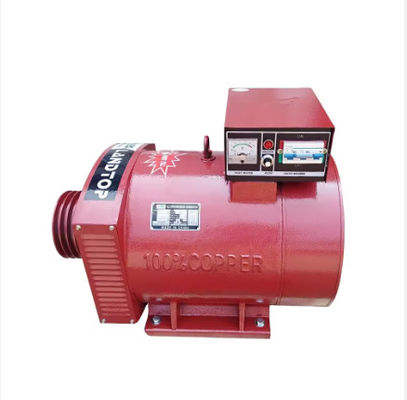

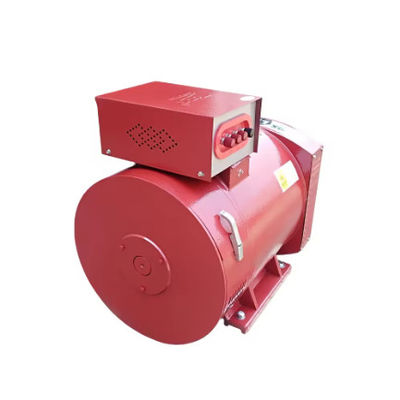

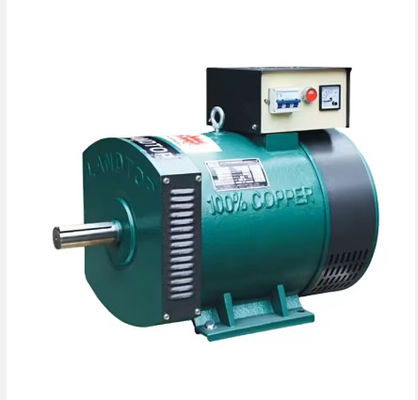

Picture Display

1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 01500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 1

1500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 11500/1800rpm 3 Phase 10kw 15kw 20kw 30kw 50kw 75kw STC Alternator Brush Generator Dynamo Price 3



FAQ:

Q1: Are you a factory
A1: Of course.


Q2.Do you have certificate?
A2:Our company has achieved ISO9001, CE certification.

Q3: How about the delivery time?
A3: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.

Q4: Can we print the LOGO on products?
A4: Yes, OEM is available with the permission of our customers.

Q5: What is your payment term?
A5: T/T or L/C, if you want other payment terms, please contact us.
