Product Details:
|
| Material: | Cuzn25Al6Fe3Mn3 | Lubricating: | Oilless |
|---|---|---|---|
| Density: | 8 | HB Hardness: | >250 |
| Tensile Strength MPa: | >800 | Yield Strength MPa: | >450 |
| Highlight: | High Load Solid Inlaid Bearing,Wear Resistant Metal Solid Inlaid Bearing,Wear Resistant Solid Inlaid Bearing |
||
Solid Inlaid Bearing Wear-Resistant Metal High Load, Impact Resistance, And Non-Metallic Low Coefficient
Product Description:
Product Parameter:
| Performance | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 |
|---|---|---|---|---|---|
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| Hardness HB | ≥ 210 | ≥ 70 | ≥ 150 | ≥ 75 | ≥ 235 |
| Tensile strength N/mm² | ≥ 750 | ≥ 250 | ≥ 500 | ≥ 270 | ≥ 800 |
| Yield Strength N/mm² | ≥ 450 | ≥ 90 | ≥ 260 | ≥ 150 | ≥ 450 |
| Elongation rate % | ≥ 12 | ≥ 13 | ≥ 10 | ≥ 5 | ≥ 8 |
| Linear expansion coefficient | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
| Operating temperature | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
| Maximum dynamic load N/mm² | 100 | 60 | 50 | 70 | 120 |
| Maximum line speed (dry) m/min | 15 | 10 | 20 | 10 | 15 |
| Maximum PV (Lubrication) N/mm²·m/s | 200 | 60 | 60 | 80 | 200 |
| Compression deformation 300 N/mm² | ＜ 0.01 | ＜ 0.05 | ＜ 0.04 | ＜ 0.05 | ＜ 0.005 |

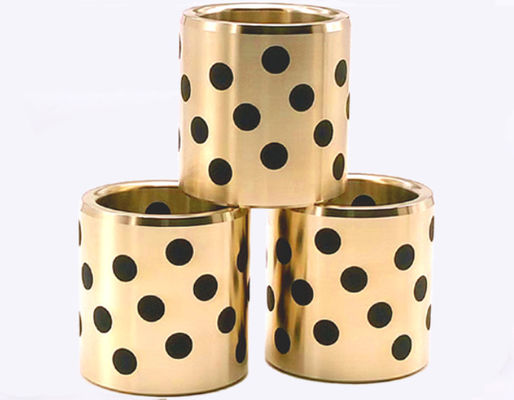

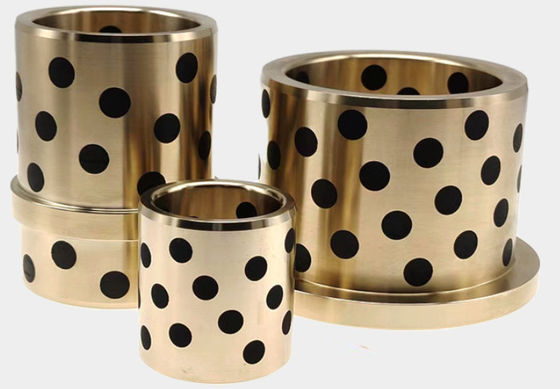

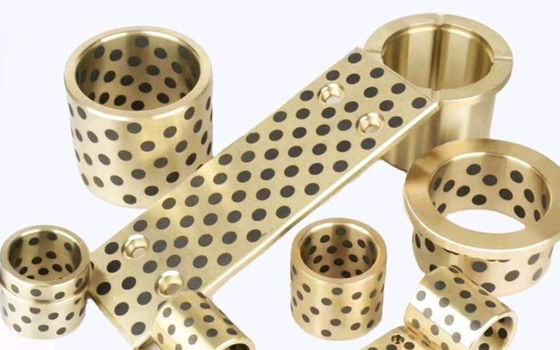

Picture Display:
Q1: Are you a factory
A1: Of course.
Q2.Do you have certificate?
A2:Our company has achieved ISO9001, CE certification.
Q3: How about the delivery time?
A3: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.
Q4: Can we print the LOGO on products?
A4: Yes, OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T or L/C, if you want other payment terms, please contact us.
