Product Details:
|
| Rated Lifting Load: | 5000KGS | Load Center Distance: | 500MM |
|---|---|---|---|
| Lift Height: | 3000MM | Front Overhang (Wheel Center To Fork Face): | 579MM |
| Overall Width: | 1460MM | Mast Lowered Height: | 2270MM |
| Type: | Diesel Forklift | Turning Radius (outside: | 2910MM |
| Engine Model: | ISUZU 6BG1-02 | Wheelbase: | 1900MM |
| Speed Travel (Full Load): | 25KM/H | ||
| Highlight: | 5T Diesel Forklift Truck,Hydraulic Stacker Diesel Forklift Truck,Intelligent Starting System Diesel Forklift Truck |
||
ISUZU 6BG1-02 Engine 5T Diesel Forklift Truck Intelligent Starting System Hydraulic Stacker Trucks
PRODUCT DETAILS:
1.Intelligent Starting System, forklift hanging gear start prevent function improves the operation safety and longer gearbox service life;
2.Ergonomic design, rational operation device layout, equipped with adjustable seats and steering wheel;
3.Electric one button parking brake, hydraulic power drive, seperate design between the parking brake and the driving brake provides a more reliable and safety parking brake.
Product parameter:
| Model | FD50 | |||
| Power Type | Diesel | |||
| Rated Capacity | kg | 5000 | ||
| Load Centre | mm | 500 | ||
| Lift Height | mm | 3000 | ||
| Mast Tilt Angle | F/R | Deg | 6°/12° | |
| Front Overhang (Wheel center to fork face) | mm | 579 | ||
| Ground Clearance(Bottom of mast) | mm | 150 | ||
| Length to face of fork(Without fork) | mm | 3260 | ||
| Overall Width | mm | 1460 | ||
| Mast Lowered Height | mm | 2270 | ||
| Turning Radius (outside) | mm | 2910 | ||
| Speed Travel (Full load) | km/h | 25 | ||
| Tire | Front | mm | 300-15-18PR | |
| Rear | mm | 7.00-12-12PR | ||
| Wheelbase | mm | 2100 | ||
| Battery Voltage/Capacity | V/Ah | (12/80) x 2 | ||
| Engine | Model | 6BG1-02 | ||
| Manufacture | ISUZU | |||
| Rated output/r.p.m. | kw | 82.4/2000 | ||
| Rated torque/r.p.m. | N·m | 416.8/1500 | ||
| No.of Cylinder | 6 | |||
| Bore×Stroke | mm | 105×125 | ||
| Displacement | cc | 6494 | ||
| Fuel Tank Capacity | L | 125 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

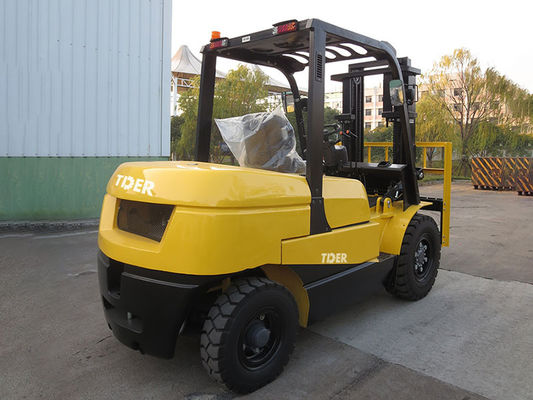

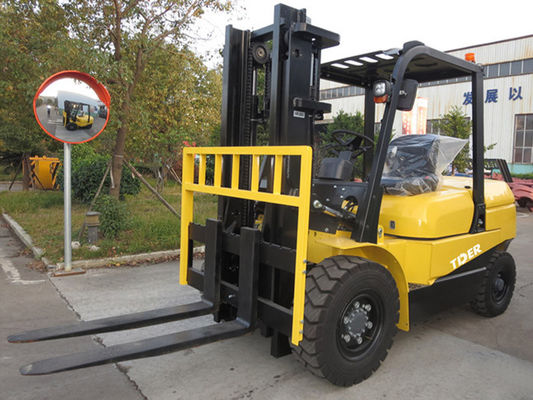

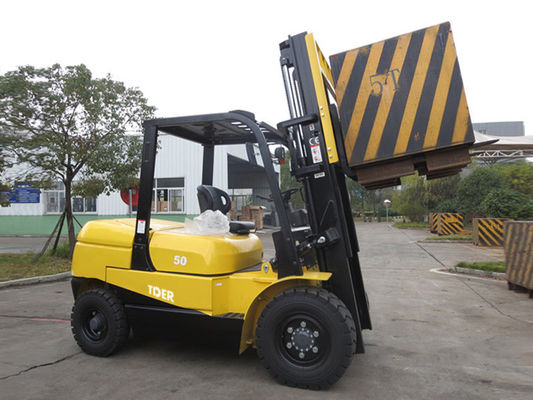

Picture Display:
Q1: Are you a factory
A1: Of course.
Q2.Do you have certificate?
A2:Our company has achieved ISO9001, CE certification.
Q3: How about the delivery time?
A3: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.
Q4: Can we print the LOGO on products?
A4: Yes, OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T or L/C, if you want other payment terms, please contact us.
