Product Details:
|
| SIZE: | 536*450*800mm 656*570*800mm 776*690*800mm 896*810*800mm 1016*930*800mm 1136*1050*800mm Could Be Customized | Frame Material: | Carbon Steel Coated |
|---|---|---|---|
| Color: | Orange/Blue/Black/Gray/White/Customized | Conveying Speed: | 60~140m/min(Adjustable) |
| Sorting Capacity: | 7200pcs/hour(Max) | Diverting Angle: | 30~90 Degree |
| Highlight: | Carbon Steel Coated Wheel Sorter,Electrical Wheel Sorter |
||

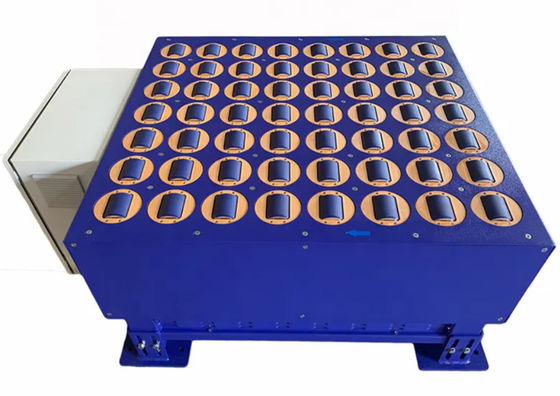

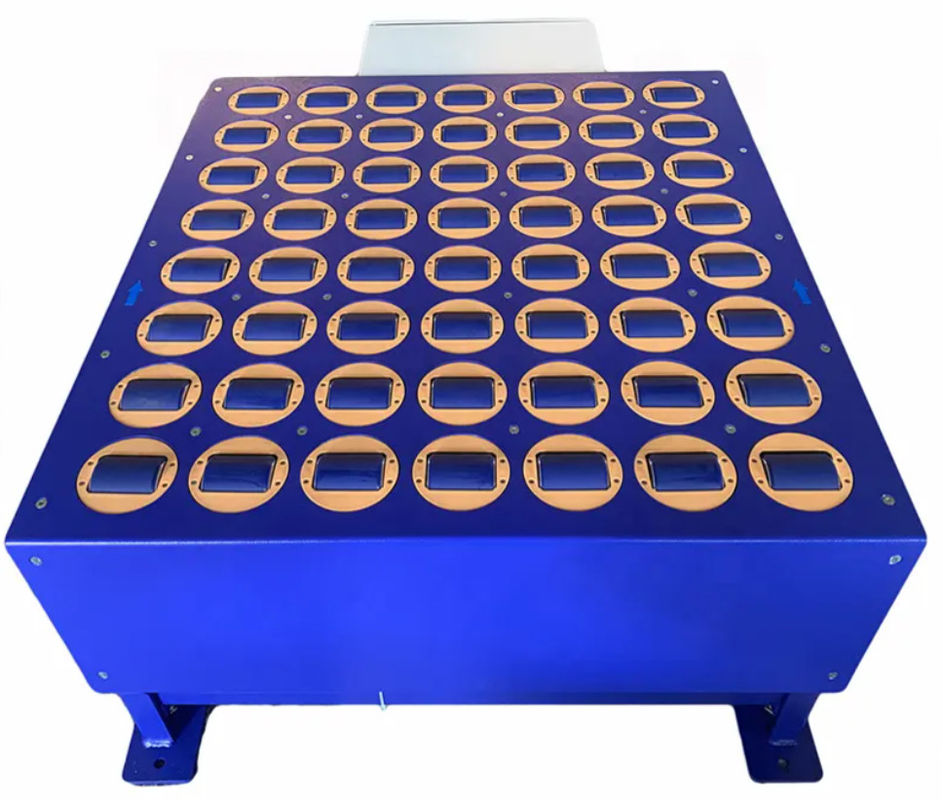

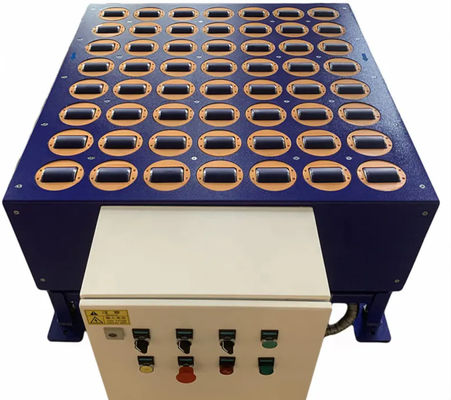

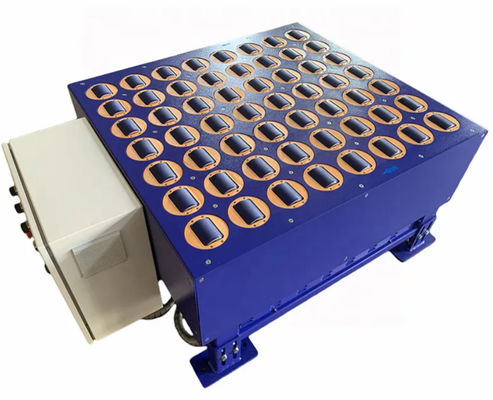

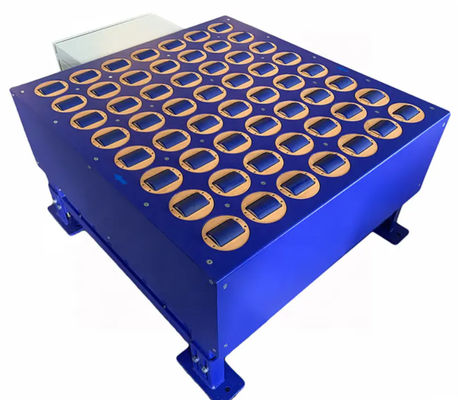

Mail Hub DHL/FEDEX/TNT/UPS Carton Box Parcel Wheel Diverter Logistic Equipment Sorting Machine
Product Description
It is designed for sorting parcels and packages in different industries. The characteristics of this design is to track conveyed goods accurately and stably as well as set sorting positions at any position along both sides of conveyor lines conveniently to satisfy customers with different sorting requirements. Each sorters could satisfy 3-5 sorting directions. This type of wheel sorter is mainly suitable for large throughput and very easy to maintenance.
| Basic Information | |
| Model | Electrical Wheel Sorter |
| Frame Material | Carbon Steel Coated |
| Color | Orange/Blue/Black/Gray/White/Customized |
|
Dimensions(L*W*H)
| 536*450*800mm 656*570*800mm 776*690*800mm 896*810*800mm 1016*930*800mm 1136*1050*800mm Could be customized |
| Performance | |
| Conveying Speed | 60~140m/min(Adjustable) |
| Sorting Capacity | 7200pcs/hour(Max) |
| Diverting Angle | 30~90 Degree |
| Discharge Direction | Right, Left and Forward |
| Operating Temperature | -10~40℃ |
| Electrical | 40W, 48V per wheel |
| Interface Options | RS485/232, Ethernet, IO |
| Max Loading Weight | 70KG/SQ |
| Noise | less than 75dB (distance within 1.5m) |
Q: Are you a manufacturer?
A: Yes. We are one of the leading manufacturers.
Q: Do you have stock for sale?
A: Yes, but we also provide OEM service.
Q: Do you check the finished product?
A: Yes. Every step of the product will be inspected until it is shipped.
Q: What are your advantages?
A: We are a manufacturer with advanced and new machines. It ensures that we have the ability toexecute the production plan to deliver on time.
