Product Details:
|
| Seals Type: | RS -2RS -Z -ZZ OPEN | Bore Diameter: | 25mm |
|---|---|---|---|
| Precision Rating: | P0 | Material: | Cast Iron |
| Feature: | Long Life | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining |
| Highlight: | UCFC205 Spherical Roller Bearings,UCFC205 Pillow Block Bearing,Pillow Block Bearing With Circular Housing |
||
Pillow Block Bearing UCFC205 With Circular Housing And Spherical Bearing
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining |
| Place of Origin | China |
| Precision Rating | P0 |
| Type | Pillow Block |
| Model Number | UCFC205 |
| Material | Cast Iron |
| Application | Automotive.tractor.construction Machinery.rolling Mill |
| Service | OEM Customized Services |
| Certification | ISO9001:2008 |
| Feature | Long Life |
| Package | Cartons |
| Stock | Large |
| Bore Diameter | 25mm |

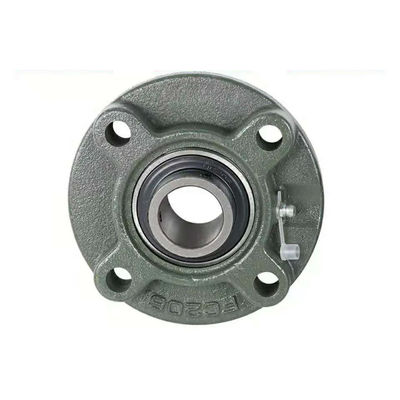

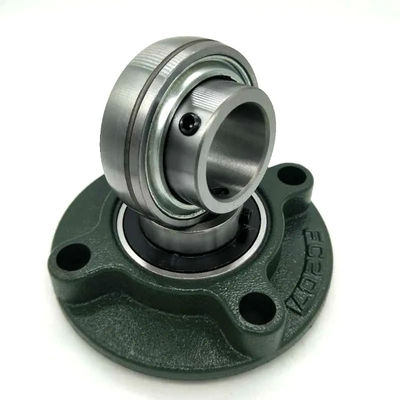

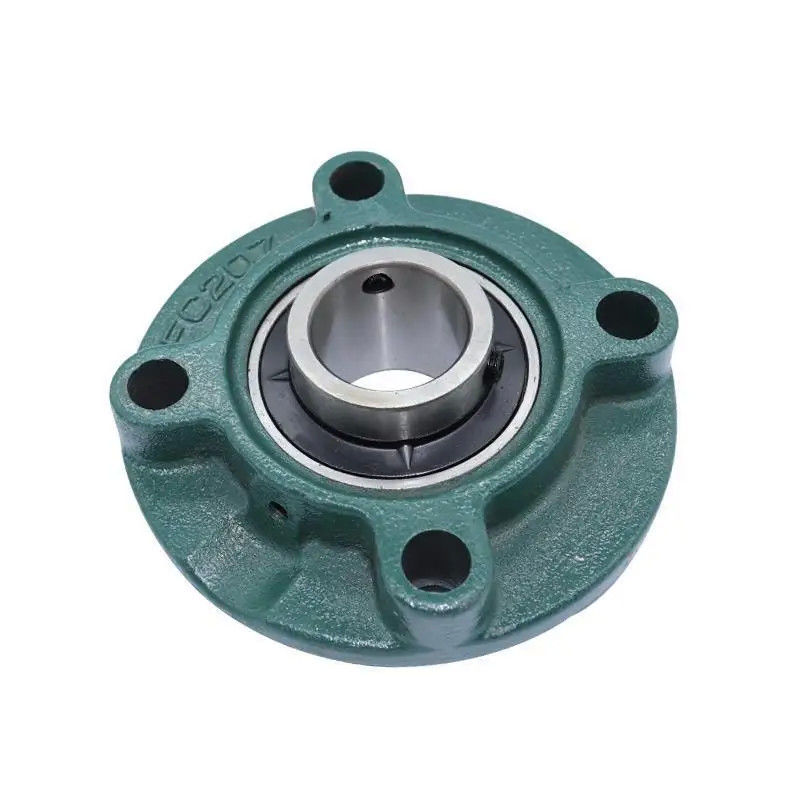

UCFC 205--Round flange ball bearing unit with extended inner ring and set screw locking, cast iron housing, JIS
These round flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement. * Resist high levels of contamination
* Designed for high temperatures and speeds
* Accommodate relatively heavy loads
* Cost-effective
| Bearing and Housing UCFC205 | |
| Dimensions | Pillow bearing with round circular flange |
| Shaft diameter | 25 mm |
| Housing overall width | 27.5 mm |
| Width, total | 29.7 mm |
| Pitch diameter of bolt holes of round | 90 mm |
| and triangle flange type housing | |
| Bearing width, total | 34 mm |
| Basic dynamic load rating | 14 kN |
| Basic static load rating | 7.8 kN |
| Limiting speed | 5 850 r/min |
| Housing type | Flanged |
| Flanged housing type | Round |
| Number of bolt holes for fasteners | 4 |
| Fastening bolt hole type | Plain |
| Retaining feature, inner ring | Set screws |
| Bore type | Cylindrical |
| Rubber seating ring | Without |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing type | Contact, standard |
| Sealing, unit | Optional end cover |
| Lubricant | Grease |
