Product Details:
|
| Seals Type: | RS -2RS -Z -ZZ OPEN | Size: | 0.75x1.625x0.4375inch |
|---|---|---|---|
| Precision Rating: | P6 P5 P4 | Material: | ZrO2 Ceramic Bearing |
| Max Temperature: | 400℃ | Standard: | ISO3547 |
| Highlight: | High Temperature Resistance Ceramic Ball Bearing,Ceramic Ball Bearing R12 |
||

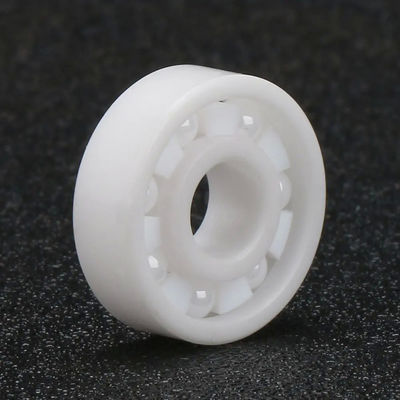

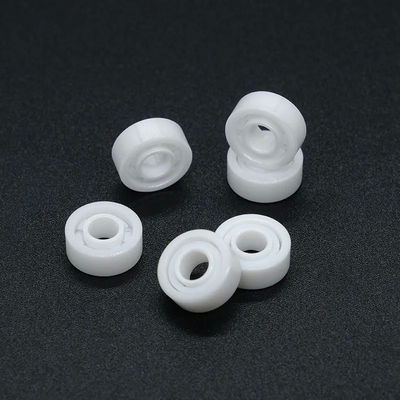

High Temperature-Resistance Ceramic Ball Bearing R12 R10 R188 With Inch Size
| Applicable Industries | Food & Beverage Factory, Retail, Construction works , Energy & Mining |
| Place of Origin | China |
| Precision Rating | P2 |
| Type | CERAMIC BALL |
| Model Number | R12 |
| Material | ZrO2 ceramic bearing |
| Precision Rating | P6 P5 P4 |
| Package | Standard |
| Inch Size | 0.75x1.625x0.4375inch |
| Operating characteristics(OC) | high speed,High temperature resistance |
| Standard | ISO3547 |
| Service | OEM Customized Services |
| Max temperature | 400℃ |
| Related Model | 608CE |

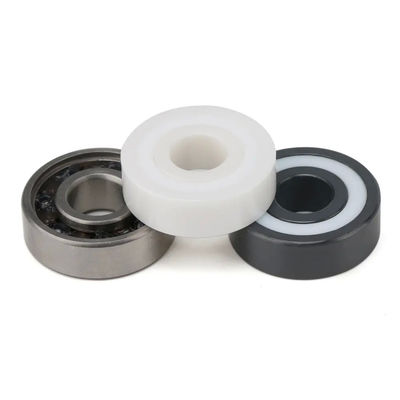

1.Ceramic Bearings have two types of ceramic bearing, hybrid ceramic bearing and full ceramic bearing.The hybrid ceramic bearing has steel inner and outer rings with ceramic balls.

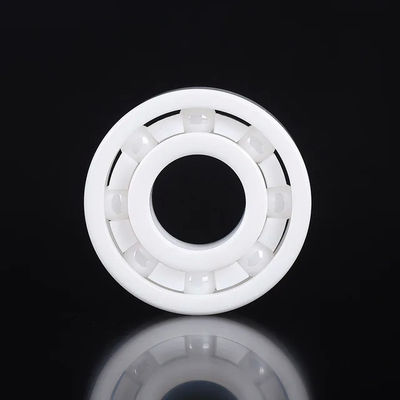

2.Ceramic Bearings, ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.
3.The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel, which makes ceramic bearing go faster with lower heat generated.
| Bearing Type | Dimensions(Inch size) | ||
| Bearing.no | ID(inch) | OD(inch) | Width(inch) |
| R2 | 0.125 | 0.375 | 0.1562 |
| R3 | 0.1875 | 0.5 | 0.196 |
| R166 | 0.1875 | 0.375 | 0.125 |
| R168 | 0.25 | 0.375 | 0.125 |
| R188 | 0.25 | 0.5 | 0.1875 |
| R4 | 0.25 | 0.625 | 0.196 |
| R6 | 0.375 | 0.625 | 0.1562 |
| R8 | 0.5 | 1.125 | 0.3125 |
| R10 | 0.625 | 1.375 | 0.3438 |
| R12 | 0.75 | 1.625 | 0.4375 |
| R144 | 0.125 | 0.25 | 0.0937 |
| R156 | 0.1875 | 0.3125 | 0.125 |
Application:
1. Ceramic bearing can be used in extremely bad environment and special conditions.
2. Ceramic bearings can be widely used in skateboard, aviation, spaceflight, navigation, petroleum, chemical industry, automobile,electronics, metallurgical, power, textile, pumps, medical equipment and scientific research.
Q: Are you a manufacturer?
A: Yes. We are one of the leading manufacturers.
Q: Do you have certificate?
A: Our company has achieved ISO9001, CE certification.
Q: How about the delivery time?
A: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.
Q: Can we print the LOGO on products?
A: Yes, OEM is available with the permission of our customers.
Q: What is your payment term?
A: T/T or L/C, if you want other payment terms, please contact us.
