Product Details:
|
| Material: | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 | Size: | 20X42X14mm |
|---|---|---|---|
| Closures: | Open, ZZ,2RS ,RZ, | Vibration: | Z1V1,Z2V2,Z3V3 |
| Tolerance: | ABEC-1,ABEC-3,ABEC-5 | Precision Rating: | Z1 Z2 Z3 |
| Highlight: | Single Row Spherical Roller Bearings,Si3N4 Spherical Roller Bearings,Si3N4 Cylindrical Roller Bearings |
||
Single Row Full Complement Cylindrical Roller Bearing
Product Description:
Full complement cylindrical roller bearings to withstand heavy loads and design. In the same breadth, the bearings and traditional bearings with cage, compared with a high load carrying capacity, small radial section, you can save space, but the speed is relatively low.
To make bearing work, in the case of continuous operation, the bearings must bear a certain minimum load, ie, C / P <25.
Otherwise it will aggravate frayed due to insufficient lubrication and high-speed operation. All multi-row cylindrical roller bearings in the outer ring has a lubrication groove and lubrication holes.
Product Parameter:
| Product Name | NJ2004EV/C3 Single Row Full Complement Cylindrical Roller Bearing |
| Dimension | 20X42X14mm |
| Model Number | NJ2004EV/C3 |
| Material | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 |
| Cage | Without |
| Closures | Open, ZZ,2RS ,RZ, |
| Types | N, NU, NJ, NF, NUP, NCF,NN, NNU, FC, FCD, FCDP, NNCF,NNF,SL etc For non standard bearing,there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients. |
| Precision | P0, P6, P5, P4, P2 or as requested |
| Vibration | ZV1, ZV2, ZV3, or as requested |
| Clearance | C0,C2,C3, or as requested |

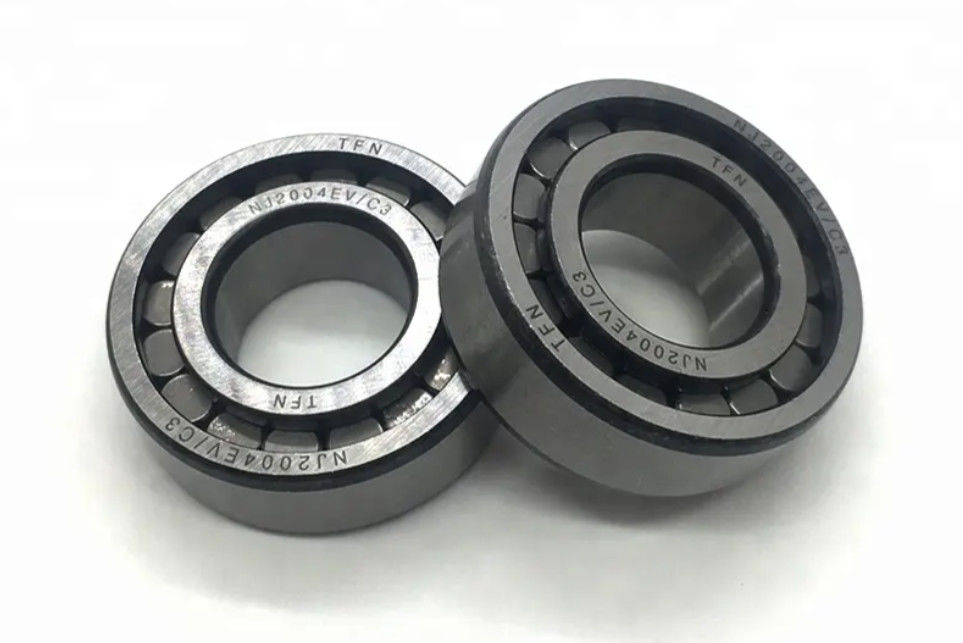

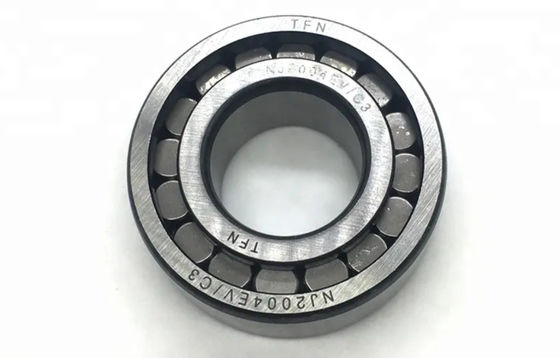

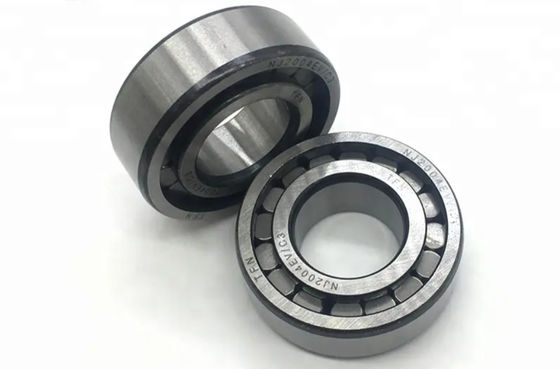

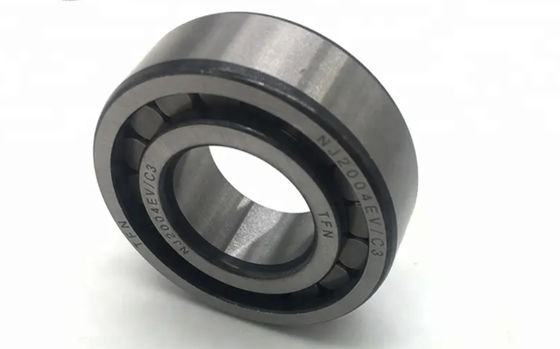

Picture Display:
