26ton 177kw Vibratory Single Drum Road Roller 6626E With Attachments

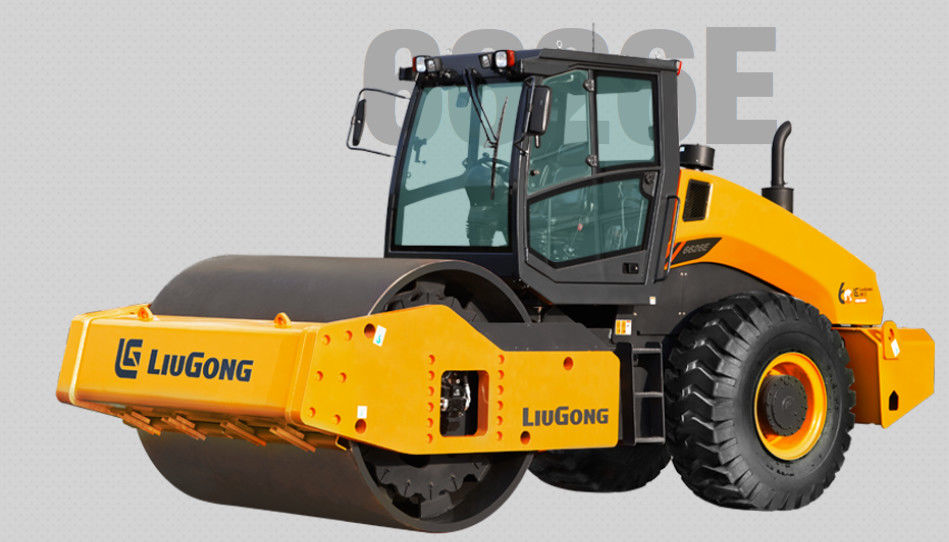

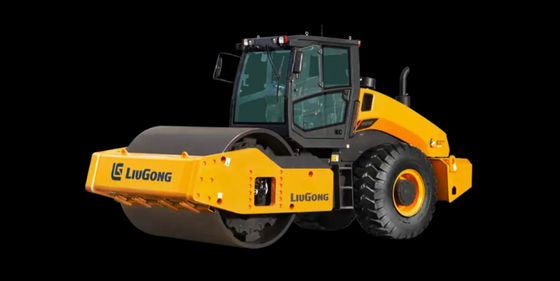

Large Image : 26ton 177kw Vibratory Single Drum Road Roller 6626E With Attachments

Product Details:

Place of Origin:	CHINA
Brand Name:	ABC
Certification:	CE, ISO
Model Number:	ABC-6626E

Payment & Shipping Terms:

Minimum Order Quantity:	2UNITS
Price:	Negotiate
Packaging Details:	Iron frame
Delivery Time:	20-22DAYS
Payment Terms:	T/T, Western Union
Supply Ability:	10UNITS/DAY

Contact Now Chat Now

26ton 177kw Vibratory Single Drum Road Roller 6626E With Attachments

Description

Operating Mass:	26000 Kg	Mass On Front Drum:	17200 Kg
Mass On Rear Axle:	8800 Kg	Front Drum Static Linear Load:	766 N/cm
Rated Power:	177 KW (241hp) @ 2200 Rpm	Centrifugal Force:	480/375 KN
Drum Diameter:	1700 Mm	Min. Ground Clearance:	500 Mm
Wheelbase:	3250 Mm	Min. Outside Turning Radius:	7000 Mm
Overall Length:	6500 Mm	Overall Width:	2500 Mm
Overall Height:	3150 Mm
Highlight:	177kw Vibratory Single Drum Road Roller , 26ton Vibratory Single Drum Road Roller

Brand New 26ton 177kw Vibratory Single Drum Road Roller 6626E With Attachments

FEATURES:

Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.
With dual frequency and double amplitude vibratory mode, our rollers generate industry leading centrifugal compaction force.
With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.

SPECIFICATIONS

Operating Mass	26000 kg
Mass On Vibrating Drum	17200 kg
Mass On Drive Axle	8800 kg
Front Drum Static Linear Load	766 N/cm
Model	Shangchai SC9DK240G3
Emission Regulation	Stage III
Rated Power	177 kW (241hp) @ 2200 rpm
Vibration Frequency	28/33 Hz
Nominal Amplitude	1.8/1.8 mm
Centrifugal Force	480/375 kN
Drum Diameter	1700 mm
1st Maximum Speed, fwd	4.1 km/h
2nd Maximum Speed, fwd	5.6 km/h
3rd Maximum Speed, fwd	6.2 km/h
4th Maximum Speed, fwd	10.4 km/h
Theoretical Gradeability	50%
Min. GroundClearance	500 mm
Wheelbase	3250 mm
Min. Outside Turning Radius	7000 mm
Overall Length	6500 mm
Overall Width	2500 mm
Overall Height	3150 mm
